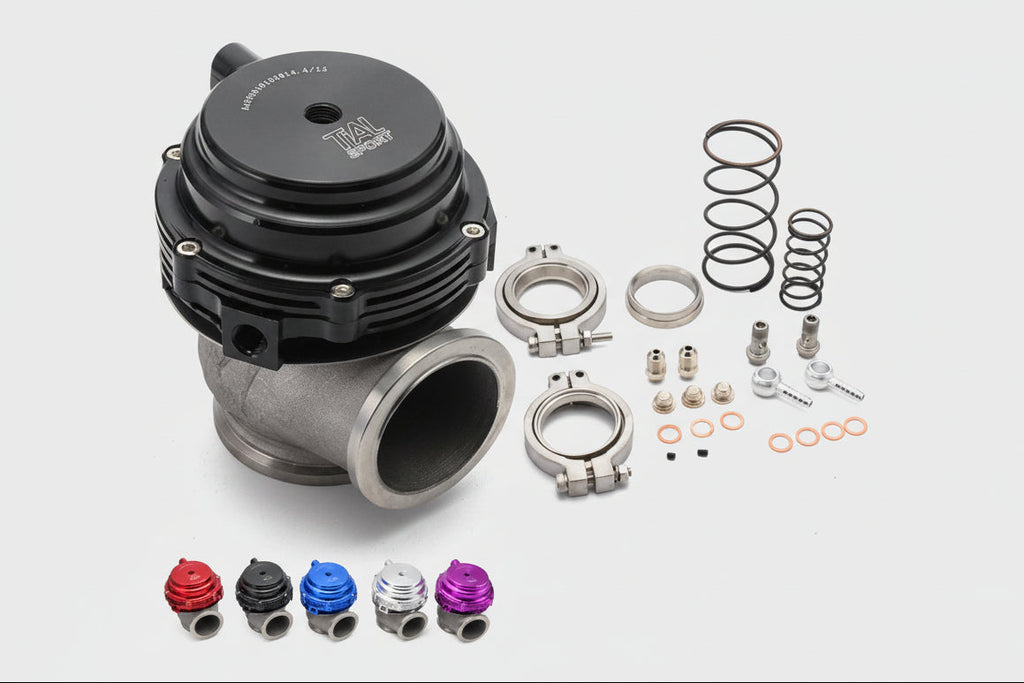

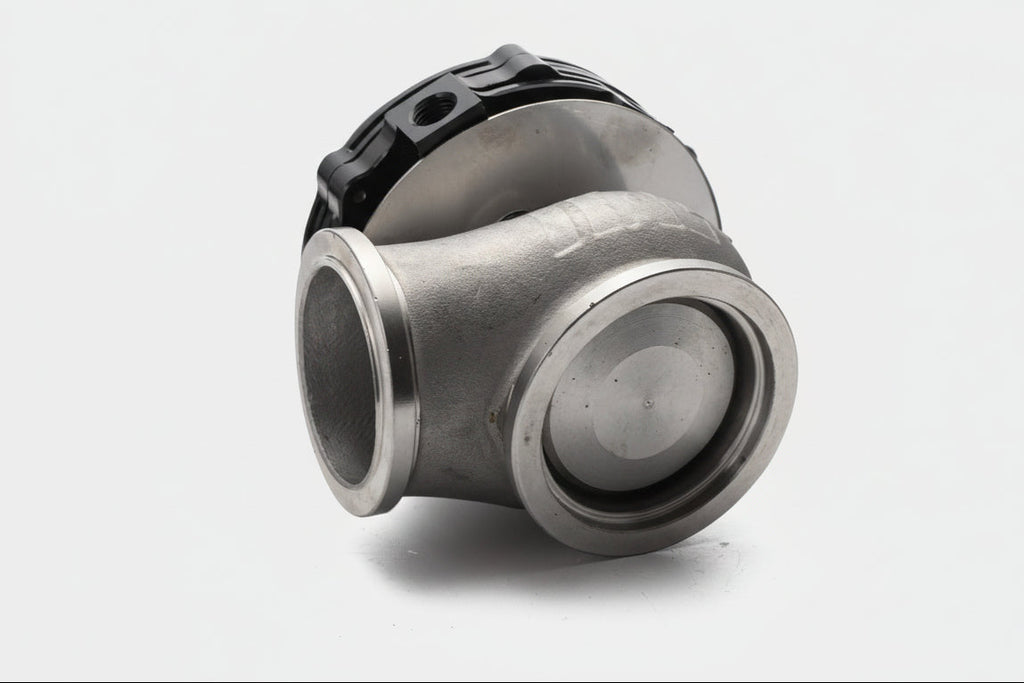

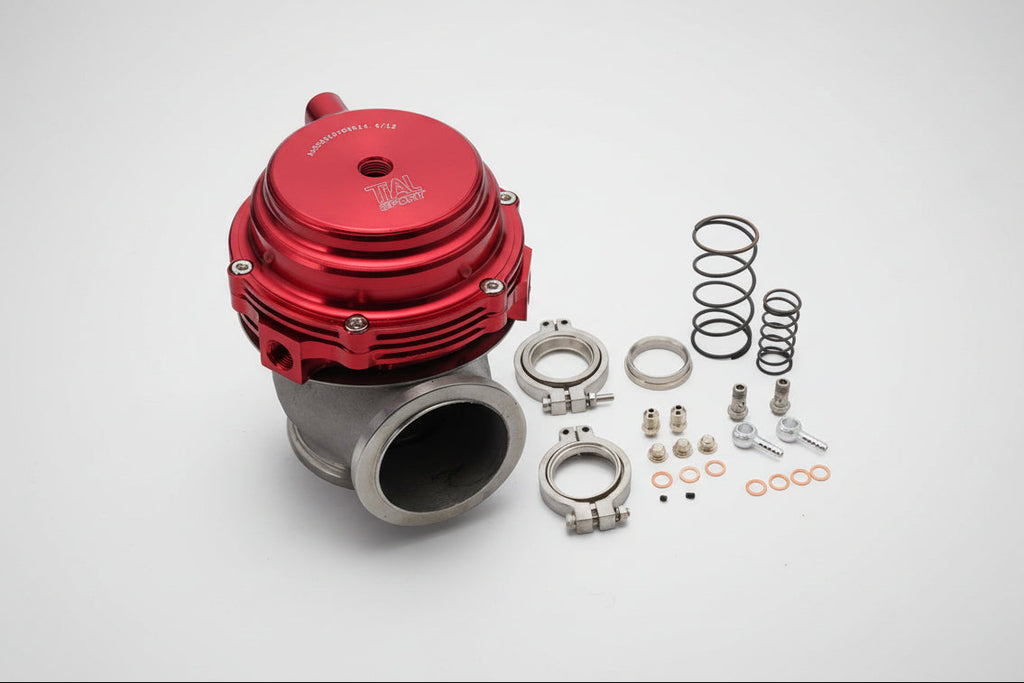

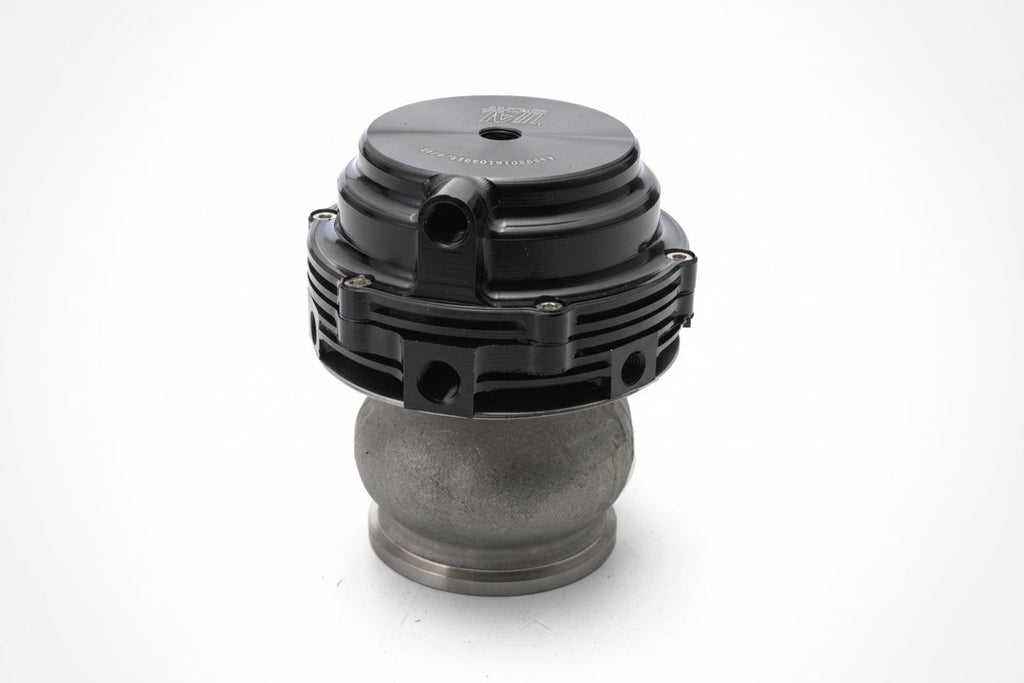

44mm Turbo External Wastegate

Specification:
Size: 44mm
Material:Steel And Alumium
Factory installed spring is 14 psi , and come 2 springs 7&17psi for spare parts
Weldable Flange V-Band Flange for Dump Pipe
Stainless Steel V-Band Flanges and Sealing Rings
Application:Universal.

Package Included:
1x Wastegate.
Accessories.

Features :
High performance stainless steel wastegate
Ductile cast iron valve body to resist extreme temperatures and warping
Valve body has fin heat sinks to help dissipate head and minimize heat on the diaphragm body
Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel.
Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine
Wastegates are bolted to exhaust manifold or header. The advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine.
This tends to improve the turbine's performance.
Notes:
There are no installation guides provided with our items
We highly recommend that you seek professional installation
